The SkylinkHome 3-Way On/Off Smart Switch Kit gives you the convenience of adding an extra wall switch without the hassle of running additional wiring. You can turn lights on and off from either end, making it ideal for stairwells, garages, bedrooms, or basements. The SkylinkHome wall switch replaces your existing wall switch and the remote wall switch is battery-powered and simply sticks where you need it. There is even a built-in timer that can be set to automatically turn off up to 60 minutes later to conserve energy.

Features

• Add extra wall switch anywhere without additional wiring


  The SkylinkHome 3-Way On/Off Smart Switch Kit replaces your existing wall switch and gives you the convenience of adding an extra wall switch without the hassle of running additional wiring.


• Provides remote on/off control

  Provides on/off control of incandescent or CFL bulbs up to 600W, heaters up to 1000W, or fans/motors up to 1/3HP, making it ideal for stairwells, garages, bedrooms, or basements.


• Easy to Install

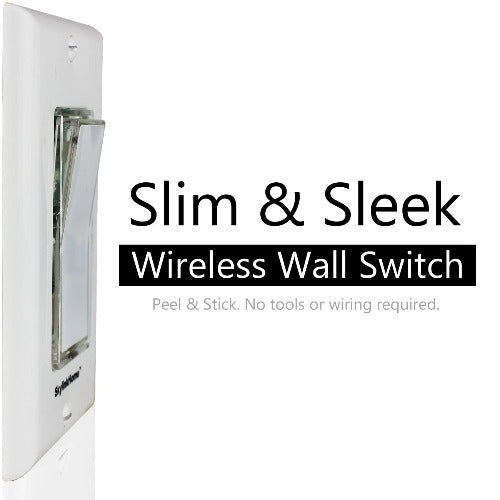

  The SkylinkHome Wall Switch replaces your existing wall switch and doesn’t require neutral wiring and the wireless Wall Switch transmitter is battery powered and can be mounted anywhere you would like to control your lighting.


• Long Range Signal


  The wireless Wall Switch transmitter is operated by a long life lithium battery and carries a signal up to 500 feet away in an open area, giving you the freedom to mount an additional wall switch anywhere that is convenient for you.


• Built-in Auto-Timer


  The SkylinkHome Wall Switch has a built-in auto-off timer that can be set to turn off after 1, 5, 15, 30 or 60 minutes and is perfect for bathroom lights, fans, closet lights, garage lights and more.

COMPATIBILITY

Works with

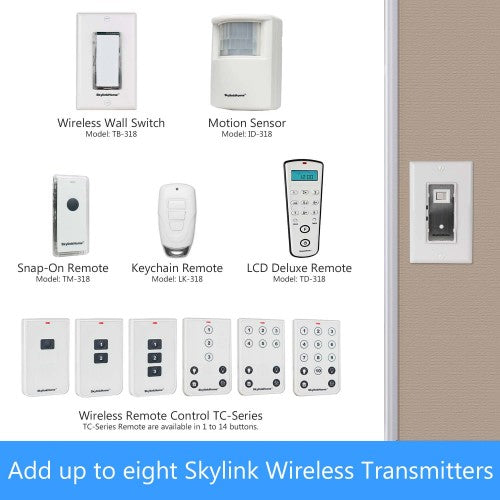

Works with eight Skylink wireless transmitters, such as the Wireless Wall Switch (TB-318), Motion Sensor (ID-318) or Remote Controls (TC-318 Series), to control your Wall Switch receiver.

SPECS

Technical Specifications

• Input Voltage: 120 VAC, 60 Hz

• Standby Current: 0.2 mA

• Minimum Load: 10W

• Maximum Ballast Load: 500W
• Maximum Tungsten Load: 600W
• Maximum Resistive Load: 1000W

• Operating Frequency: 318MHz

• Operational Temperature: -4°F - 140°F (-20°C - 60°C)

• Humidity: 5%-95%

• Range: Up to 500 feet in open area

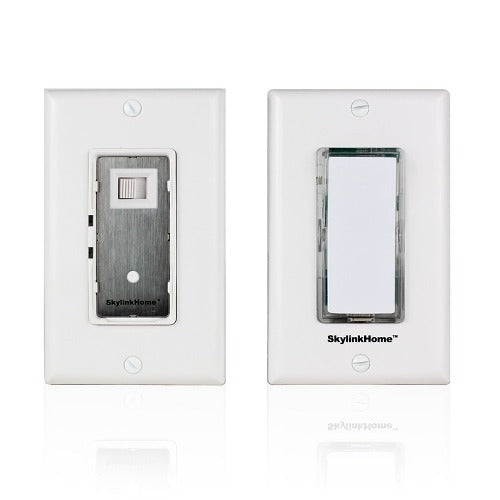

• Includes:
• Wall Switch On/Off Receiver (WE-001),
• Wireless Wall Switch Transmitter (TB-318)
• User Manual
• Screws and Double Sided Tape
• Clamshell Pack

INSTALLATION

Installation Guide

Installation Instructions
