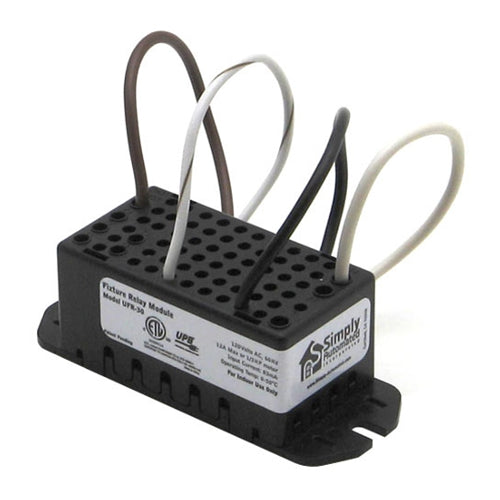

The Simply Automated UPB Fixture Relay Module is a wire-in device designed to remotely turn on/off and time-off control lighting using Universal Powerline Bus (UPB) commands and scene-links received over the powerline. The Simply Automated UPB Fixture Relay Module uses advanced UPB powerline communication technology and provides a flexible, low-cost alternative to hardwired or RF home automation strategies.

Features

• Remote control your lighting


  The Simply Automated UPB Fixture Relay Module is a wire-in device designed to remotely control lighting using Universal Powerline Bus (UPB) commands and scene-links received over the powerline.


• Reliable on/off/timed control of your devices

  The Simply Automated UPB Fixture Relay Module provides ultra-reliable on/off and timed-off control for lighting, appliances, fans and pump/motors up to 12A.


• Advanced UPB powerline communication technology

  The Simply Automated UPB Fixture Relay Module employs advanced UPB powerline communication technology, which means no computer programming or wires required.


• Manual Scene Modification


  The Simply Automated UPB Fixture Relay Module can easily change existing scenes, adding or removing devices and adjusting light levels, by pressing rockers/buttons in a specific sequence (see User Guide for details).

COMPATIBILITY

Protocol

Uses UPB powerline communications

SPECS

Technical Specifications

• Power: 120VAC ± 10%, 60Hz
• Output:
• Connections: #14 AWG stranded pigtails, 6"
• Wiring:
• Operating Temperature: 30 to 120° F (0 to 50° C)
• Dimensions: 3.6"H x 1.4"W x 1.2"D (91 x 36 x 30mm)
• Weight: 6 oz. (170g)
• Mounting: Standard outlet box; screws or ties can be used to mount in other locations. Mounting ears are designed to break away for compact installations.

INSTALLATION

Installation Guide

User Guide
