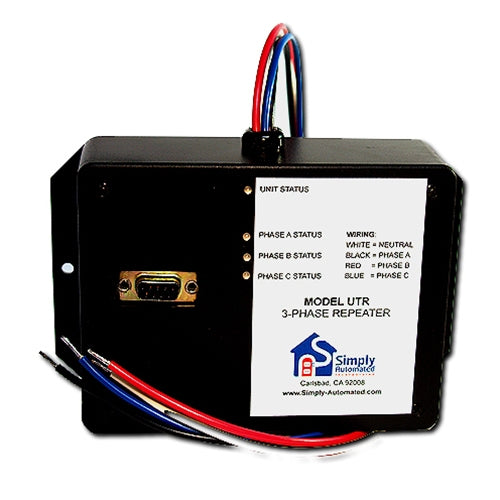

The Simply Automated UPB 3-Phase Repeater and Programmer Module is used to respond to “Repeater” UPB messages received from a UPB device from one phase onto every phase of the powerline. The Simply Automated UPB 3-Phase Repeater and Programmer Module also provides a RS-232 serial interface that can be used to transmit and receive UPB messages from a host computer or home automation controller.

Features

• Respond to “Repeater” UPB messages

  The Simply Automated UPB 3-Phase Repeater and Programmer Module is used to respond to “Repeater” UPB messages received from a UPB device from one phase onto every phase of the powerline.


• Repeats UPB signals from any one phase to the other phases

  The Simply Automated UPB 3-Phase Repeater and Programmer Module is capable of receiving a UPB message on one of the AC electrical phases and repeating it onto all three AC electrical phases.


• Built-in RS-232 serial interface

  The Simply Automated UPB 3-Phase Repeater and Programmer Module provides a RS-232 serial interface that can be used to transmit and receive UPB messages from a host computer or home automation controller.


• Advanced UPB powerline communication technology

  The Simply Automated UPB 3-Phase Repeater and Programmer Module employs advanced UPB powerline communication technology, which means no computer programming or wires required.

NOTE: Requires a neutral (white) connection wire.

COMPATIBILITY

Protocol

SPECS

Technical Specifications

• Connections: 16 GA

• LED Indicators: 4

• Dimensions: 6.5 X 4.34 X 1.83 in

• Weight: 1.5 lb.

• Mounting: Mounting holes provided

• Input Power: 110-120 VAC

• Input Frequency: 60 Hz ± 5%

• Operating Temp: -40 °F to 104 °F
