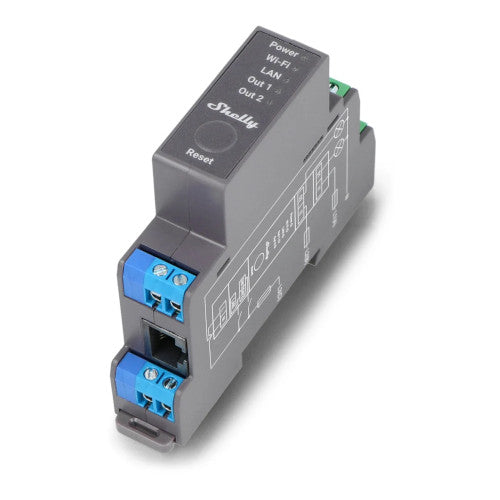

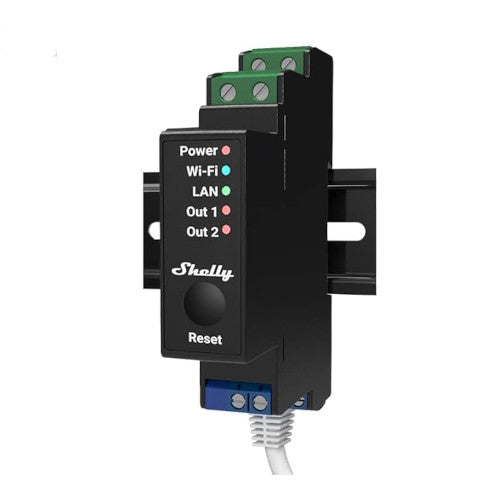

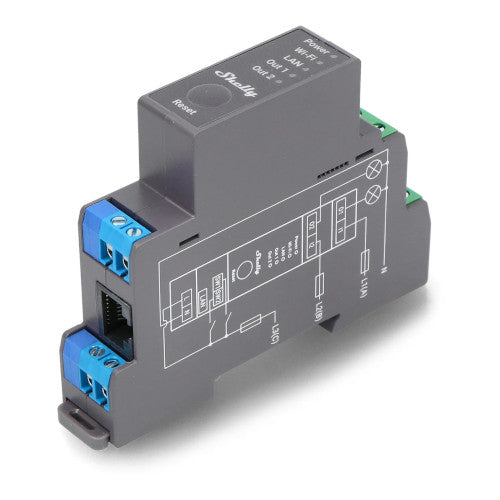

The Shelly Pro 2 Wi-Fi, LAN, Bluetooth DIN Rail Smart Relay is a versatile home automation device designed to provide control over various electrical appliances and devices.

Features

• DIN Rail Mounting

  The DIN rail mounting design makes installation easy and suitable for industrial or home automation setups where DIN rail mounting is common.

• Relay Control

  This enables control over lights, fans, heaters, pumps, and other devices remotely via the connected network.

• Mobile App Control

  Users can control connected devices using a dedicated mobile app provided by Shelly. The app offers features like scheduling, timers, and remote control, enhancing convenience and energy efficiency.

• Web Interface

  Shelly Pro 2 provides a web interface for configuration and control.

• Compatibility

  It's designed to work with various devices and systems, making it versatile for various automation applications.

• Feature Header

  Feature + Benefit

COMPATIBILITY

Protocol

Works with

SPECS

Technical Specifications

• Power supply: 110-240 VAC, 50/60 Hz
• Max load per channel: 16 A
• Total max. Current of all outputs: 25 A
• Size (HxWxD): 94x19x69 ±0.5 mm / 3.70x0.75x2.71 ±0.02 in
• Ambient temperature: -20 °C to 40 °C / -5 °F to 105 °F
• Max switching current AC: 16 A per channel, 25 A total
• Wi-Fi Range: Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions)
• Bluetooth Range: Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions)

INSTALLATION

Installation Guide

Manual
