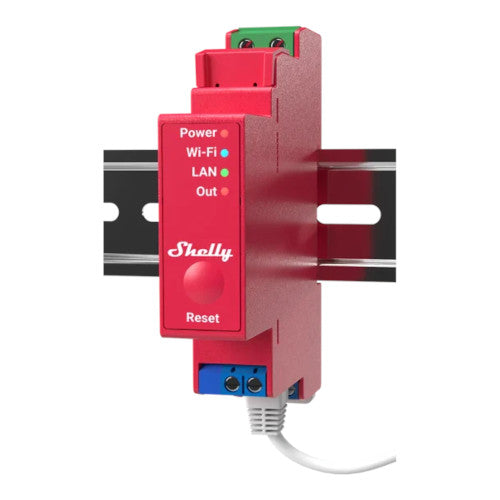

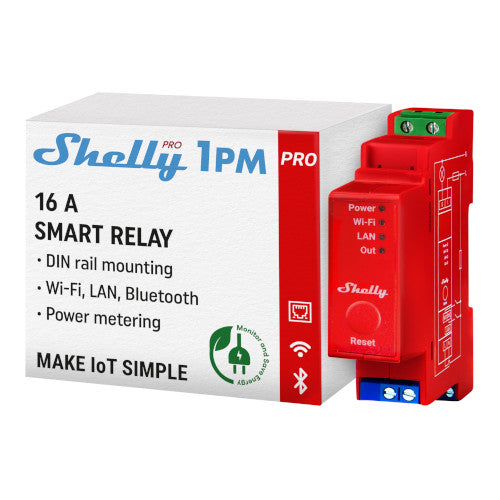

The Shelly Pro 1PM Wi-Fi, LAN, Bluetooth DIN Rail Smart Relay with Power Metering device for home and industrial automation applications. It offers a range of connectivity options, including Wi-Fi, LAN, and Bluetooth, allowing users to remotely control and monitor electrical devices or systems.

Features

• DIN Rail Mounting

  The device is designed to be mounted on a standard DIN rail, commonly used in industrial and automation setups.

• Smart Relay

  It functions as a relay, allowing users to switch electrical circuits on or off remotely. This can control lights, motors, heaters, or other electrical appliances.

• Power Metering

  The Shelly Pro 1PM is equipped with power metering capabilities, allowing users to monitor energy consumption of connected devices in real-time.

COMPATIBILITY

Protocol

Works with

SPECS

Technical Specifications

• Size: 18.5mm x 89.5mm x 68.5mm
• Wifi Radio Frequency: 2412 - 2483 MHz
• Channels: 1 Channel
• Maximum Load: 16A
• Power supply AC: 110-240V, 50/60Hz
• Wi-Fi Range: Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions)
• Bluetooth Range: Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions)

INSTALLATION

Installation Guide

Manual
