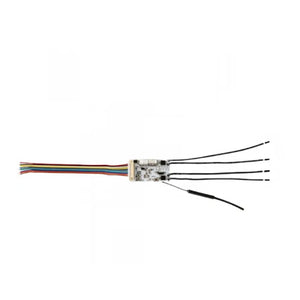

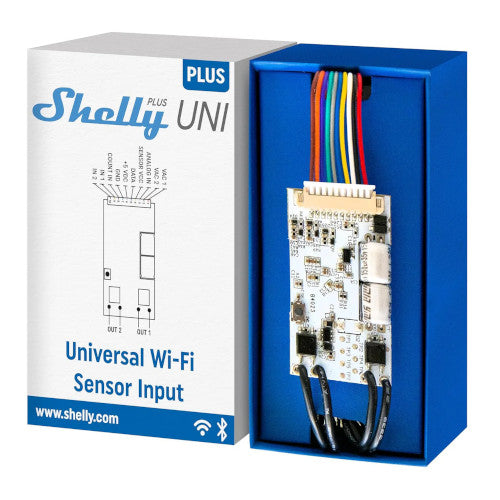

The Shelly Plus UNI Wi-Fi Universal Smart Module is a compact and intelligent universal module that has two solid-state relays with potential free contacts, two analog inputs, a pulse counter, and two digital inputs. It enables remote control of electrical appliances via a PC, tablet, smartphone, or home automation system. I

Features

• No Hub Required

  Enables easy setup and control directly through the Shelly Smart Control app, eliminating the need for additional hardware.

• Suitability for Small Appliances

  Designed for use with small appliances with low-voltage AC and DC applications, offering compatibility with a range of voltage inputs (8-24 VAC, 9-28 VDC, and 5 VDC).

• Multiple Inputs

  Features two digital inputs and one analog input, providing flexibility in connecting and controlling devices.

• Support for 1-Wire Sensors

  Allows integration with 1-Wire sensors, such as the DHT22 and up to 5 DS18B20 sensors, expanding its capabilities for environmental monitoring and control.

• Wi-Fi Range Extender & BLE Gateway

  Functions as a Wi-Fi range extender and BLE (Bluetooth Low Energy) gateway, enhancing connectivity options within the home automation ecosystem.

• Fast Processor (ESP32)

  Utilizes an ESP32 processor for fast processing and immediate reaction to commands, ensuring smooth operation and responsiveness.

COMPATIBILITY

Protocol

Works with

SPECS

Technical Specifications

• PCB size (LxWxH): 40x21x7 mm / 1.57x0.83x0.28 in
• Weight: 8.5 g / 0.3 oz (with the cables)
• Ambient temperature: -20 °C to 40 °C / -4 °F to 104 °F
• Power consumption: < 1 W
• Max switching voltage: 30 V
• Max switching current: 250 mA
• Wi-Fi Range: up to 50 m / 160 ft outdoors and up to 30 m / 100 ft indoors
• BLUETOOTH OPERATIONAL RANGE: up to 30 m / 100 ft outdoors and up to 10 m / 33 ft indoors
