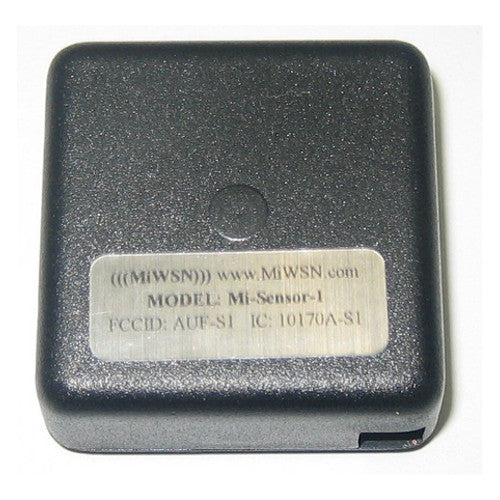

The MiWSN Mi-Sensor-1 Multifunction Wireless Smart Sensor is a multi-function battery powered wireless sensor that is capable of simultaneously monitoring Temperature, Motion/Shock, Button Press, Presence and one port function (Contacts or Water/Moisture or Light or Humidity or Volts AC or Volts DC or Capacitance or Amp Hours). The MiWSN Mi-Sensor-1 lets you configure the thresholds to trigger the sensor and the notifications sent to alert you of potential issues, so you'll never be notified of false alarms.

Features

• Multi-function sensor


  The MiWSN Mi-Sensor-1 Multifunction Wireless Smart Sensor is a multi-function battery powered wireless sensor that is capable of simultaneously monitoring Temperature, Motion/Shock, Button Press, Presence and one port function (Contacts or Water/Moisture or Light or Humidity or Volts AC or Volts DC or Capacitance or Amp Hours).


• User configured threshold and notifications


  The MiWSN Mi-Sensor-1 lets you configure the thresholds for temperature (–30C (-22F) to +60C (+140F)), motion/shock (0.06g to 6.24g in 99 steps), moisture, contact closure, light, voltage to trigger the sensor and the notifications sent to alert you of potential issues, so you'll never be notified of false alarms.


• User Accessible Test Button


  The MiWSN Mi-Sensor-1 Sensor has a user accessible test button for sending a test message and configuring the sensor, allowing you to test the button at any time to verify that the sensor is working correctly and is within wireless range of the gateway.


• 16 configurable RF channels in 2.4Ghz range

  There are 16 configurable RF channels in the 2.4Ghz operating frequency letting you select the channel that works best for you.


• Long operating distance


  Up to 300 foot outdoor or 60 foot indoor operating distance (direct line of sight without obstructions or interference), so you can place the sensor where you want to.


• Easily attaches to most surfaces


  Easily attaches to most surfaces with included double-sided adhesive foam pads, so you can place the sensor where it works for you.


COMPATIBILITY

Protocol

*

*The MiWSN products can coexist with other Zigbee and Wi-Fi networks, but have encrypted messages and are not compatible with other products.

SPECS

Technical Specifications

• Operating range of –30C (-22F) to +60C (+140F)
• Integrated antenna with up to 100m (328’) outdoor and 20m (66’) indoor operating range.

• Size 4cm (1.6”) x 4cm (1.6”) x 1.5cm (0.6”) and Weight 15g (0.5 ounces).

• User replaceable CR2032 battery with approximately one year life depending on configuration.
• Includes:
• Mi-Sensor-1
• One CR2032 Lithium battery
• 60 cm moisture sensing wire
• Two doubled sided adhesive foam pads
• Instructions
• Optional external Light, Humidity, or Amp Hour sensing element
