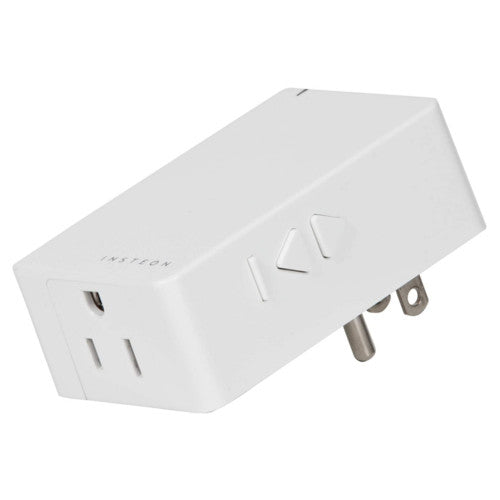

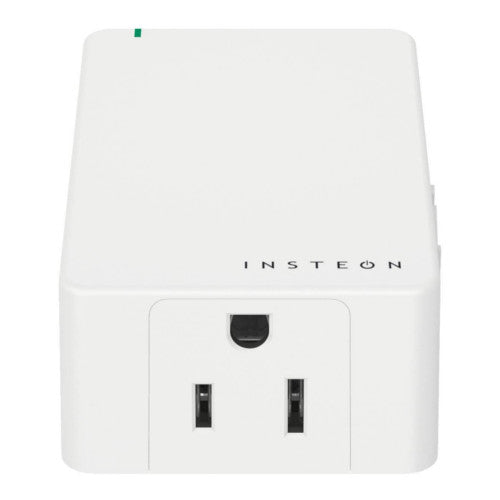

The Insteon Plug-in On/Off Dual-Band Appliance Module turns almost any plug-in device smart by letting you remote control your existing plug-in devices from your smartphone. You can remotely control lamps, space heaters, percolators, fans, making it an essential addition to your smart home.

Features

• Turn your existing plug-in devices smart

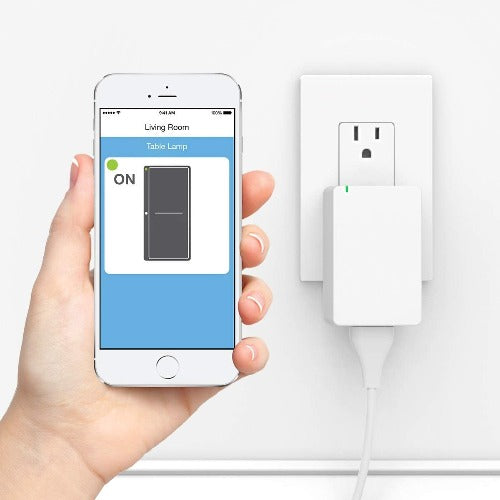

  The Insteon Plug-in On/Off Dual-Band Appliance Module turns almost any plug-in device smart by letting you remote control your existing plug-in devices from your smartphone.


• Remote control your lamps, space heaters, fans, and more


  You can remotely control lamps, space heaters, percolators, fans, making it an essential addition to your smart home.


• Link other devices for true automation


  You can even link your Insteon Plug-in On/Off Dual-Band Appliance Module to other Insteon devices such as a motion sensor, so the box fan turns on if a room gets too hot.


• Set scenes and schedules


  You can set schedules and create scenes for home and away to streamline and automate your routine.


• Dual Band Technology

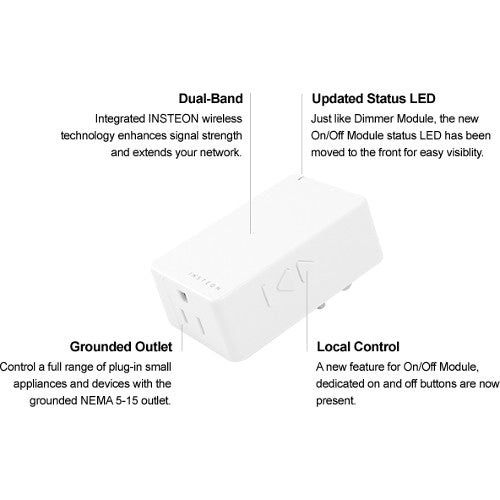

  The Insteon Plug-in On/Off Dual-Band Appliance Module uses dual band technology that uses both powerline and RF wireless communication simultaneously for the best possible communication reliability and doubles as an Insteon repeater.

COMPATIBILITY

Works with

 *

*When connected to the Insteon Hub

SPECS

Technical Specifications

• Manufacturer: Insteon

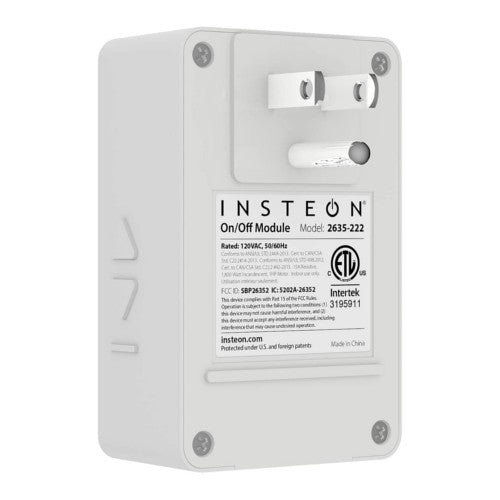

• Manufacturer Product No.: 2635-222 - (Each)
• Patent No.: U.S. Patent No. 7,345,998. Protected under U.S. and foreign patents
• FCC ID: SBP26352

• Industry Canada: 5202A-26362

• Certification: Safety tested for use in USA and Canada (ETL #3193579)

• Warranty: 2 Years
• Audio Alert: Beeper, can be disabled through software
• Operation Modes: Insteon-only

• Load Sensing: No

• Local Control: Yes

• Setup Memory: Non-volatile EEPROM

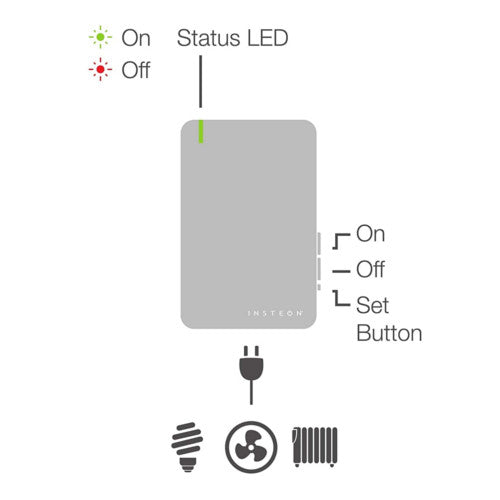

• Status LED: Red/Green LED

• Insteon Device Category: 0x02 appliance control

• Insteon Device Subcategory: 0x37

• Insteon ID: 1

• Insteon Links: 417

• Insteon Messages Repeated: Yes

• Insteon Minimum Receive Level: 10mV

• Insteon Minimum Transmit Level: 3.2 Vpp into 5 Ohms

• Insteon Powerline Device: Yes

• Insteon Powerline Frequency: Yes

• Insteon Powerline Device: 131.65 KHz

• Insteon RF Device: Yes

• Maximum Controlled Scenes: 1

• Multi-Link Support: Yes

• Multi-Unlink Support: Yes

• RF Beacon: Yes

• Radio Frequency: 915 Mhz

• Radio Frequency Range: 150 ft. (Depending on your home’s construction)

• Scene Commands Supported as Controller:
• On | Off
• Fast On | Fast Off
• Begin Brighten | Begin Dim
• End Brighten | End Dim
• Scene Commands Supported as Responder:
• On | Off
• Fast On | Fast Off
• Beep
• Operating Conditions: Indoors, 32 to 104° F, up to 85% relative humidity
• Dimensions (H x W x D): 3.2" x 2.05" x 1.05"

• Weight: 3.3oz
• Beep on Button Press: Yes, software configurable

• Beeper: Yes, software configurable

• Dimming Technology Employed: Relay - On/Off only

• Enclosure Material: UV stabalized plastic

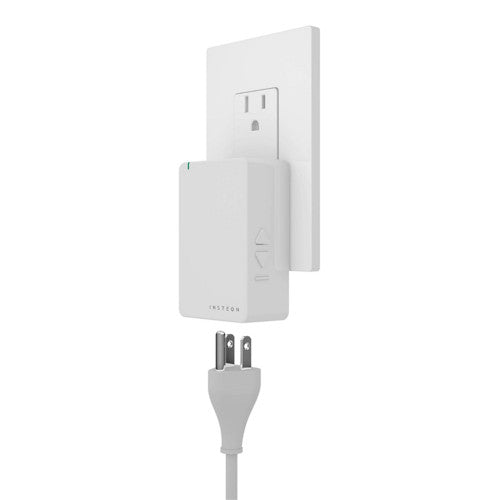

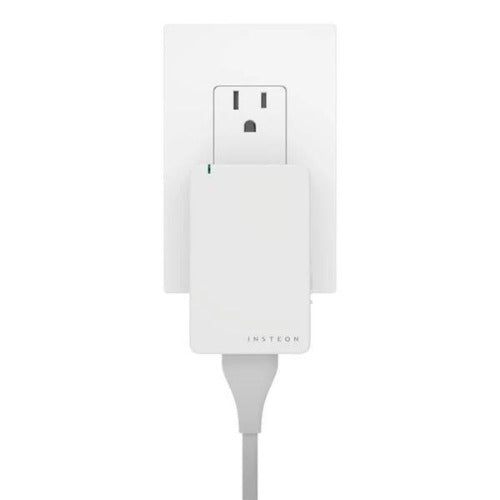

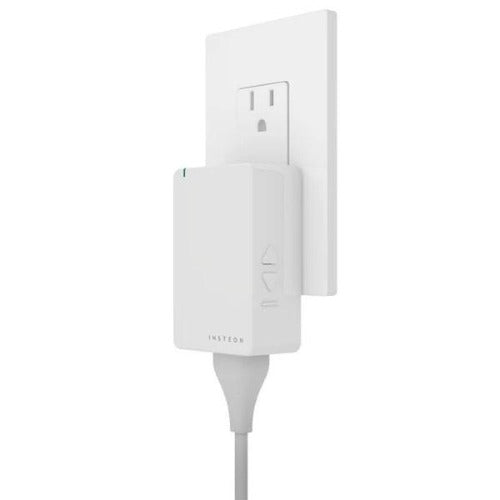

• Mounting: Grounded electrical outlet, NEMA 5-15

• Operating Environment: Indoors

• Operating Humidity Range: 0-90% relative humidity

• Operating Temperature Range:
• 32-104° F
• 0-40° C
• Set Button: Yes

• Storage Temperature Range:
• -4-158° F
• -20-70° C
• Weight: 5.2oz

• Controlled Outlet: Yes, grounded. NEMA 5-15 type

• Hardwired Remote Control: No

• Load Types:
• General Appliances: 15A Max
• Resistive: 15A Max
• Incandescent: 1,800W Max
• Motors: 1HP Max
• Maximum Load: 1,800 Watts (15 Amps)

• Minium Load: None

• Pass-through Outlet: No

• Power Consumption: <0.75 Watts

• Supply Voltage: 120 Volts AC ± 10%, 50/60 Hz, single phase

• Surge Resistance: Surges over 1,000 volts
• Includes:
• 1x - Insteon On/Off Module
• 1x - Quick Start Guide
