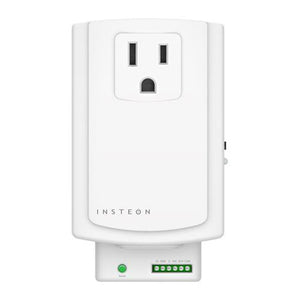

Insteon I/O Linc Low Voltage Contact Closure Module

INS-HB-2450-WT
  • $66.99


The Insteon I/O Linc Low Voltage Contact Closure Module lets you monitor and control low voltage and contact closure devices, such as pool valves, electric door strikes, garage doors as part of your Insteon network. The Insteon I/O Linc Low Voltage Contact Closure Module has one dry-contact sensor input letting you control many Insteon devices throughout the house.

Features

  • Add low voltage and contact closure devices to your Insteon network
    The Insteon I/O Linc Low Voltage Contact Closure Module lets you monitor and control low voltage and contact closure devices, such as pool valves, electric door strikes, garage doors as part of your Insteon network.
  • 1 sensor input and 1 output relay
    The Insteon I/O Linc Low Voltage Contact Closure Module has one dry-contact input and one output relay, so you can control many Insteon devices throughout the house.
  • 4 output relay modes
    The Insteon I/O Linc Low Voltage Contact Closure Module has 4 output relay modes:
    • Latching (continuous): stays open/closed until triggered
    • Momentary A: Responds to either 'Insteon On' or 'Insteon Off' command but not both
    • Momentary B: Responds to both 'Insteon On' and 'Insteon Off' signals
    • Momentary C: Uses I/O Linc input to determine if it should respond to Insteon signal
  • Wide Range of Applications

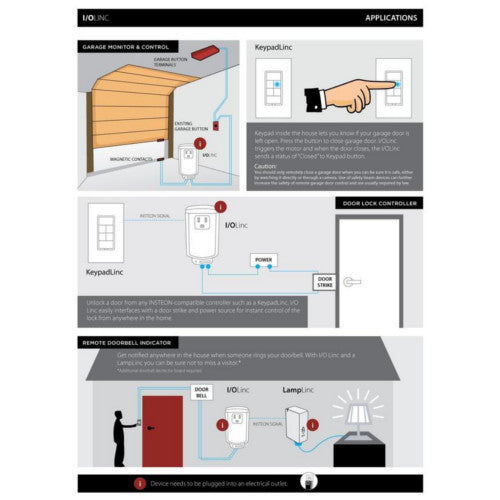

    The Insteon I/O Linc Low Voltage Contact Closure Module works with a wide range of applications and can control many different types of low voltage devices, from pool valves to alarm sensors to electric door strikes to garage doors due to its different relay modes.

SPECS

Technical Specifications

  • Manufacturer: Insteon
  • Manufacturer Product No.: 2450 - (Each)
  • FCC ID: SBP26722A
  • Certifications: FCC, IC Canada
  • Patent No.: Patent No. 7,345,998, International patents pending)
  • Warranty: 2 Years
  • Insteon Addresses: 1 hard-coded out of 16,777,216 possible
  • Insteon Links: 417
  • Insteon Powerline Frequency: 131.65 KHz
  • Insteon Minimum Transmit Level: 3.2 Vpp into 5 Ohms
  • Insteon Minimum Receive Level: 10 mV
  • Insteon Messages Repeated: Yes
  • Status LED: Yes
  • Insteon RF mesh repeater: White (Bright when relay closed, dim when relay
  • open)
  • Sensor Status LED: Green (On when sensor closed, Off when sensor open)
  • Set Button: Toggles output relay On/Off. Also used for setup
  • Momentary Duration:
    • Locally Adujtable: 2 Seconds to 30 Minutes
    • Software Adjustable, .2 Seconds - 105 minutes
  • Operation Modes: Insteon
  • Multi-Way Circuit Support: Yes
  • Setup Memory: Non-volatile EEPROM
  • I/O Terminals:
    • 5V DC (10mA)
    • GND
    • Sense
    • N/O
    • Common (28-16 gauge wire)
  • Input jack: 1/8" mini jack input (GND, Sense)
  • Input Type: Contact closure only
  • Output Relay Capacity: Standard, single gang wall box
  • Operating Conditions: Indoors: 32 to 104° (up to 85% relative humidity)
  • Dimensions: 4.5" H x 2.5" W x 1.5" D
  • Weight: 4.6 oz
  • Voltage: 120 Volts AC +/- 10%, 60 Hertz, single phase
  • Sensor Input: 1/8" mini jack input (GND, Sense)
  • Power Plug: 3-pin grounded
  • Retains all settings without power: Yes, saved in non-volatile EEPROM
  • Pass-through Outlet: Uncontrolled 3-prong (with ground), 120V, 15A
  • Power Consumption: 0.93 Watts
  • Certification: Safety tested for use in USA and Canada
  • Includes:
    • 1x - Insteon I/O Linc
    • 1x - Quick Start Guide
    • 2x - 1.5mm flathead screwdriver

INSTALLATION

Installation Guide

Quick Start Guide

Owner's Manual
