The Global Caché iTach IP2IR-P TCP/IP to IR Smart Controller with Power Over Ethernet provides PoE powered hardwired ethernet monitoring and control of infrared devices including DVD players, flat panel TVs, remote controls, stereo components, and cable boxes in a matter of minutes. You can easily convert your ordinary infrared devices into smart devices and be able to monitor, automate, and control from anywhere. Turning your existing infrared devices into smart devices is simple with the Global Caché iTach IP2IR-P TCP/IP to IR Smart Controller with PoE.

Features

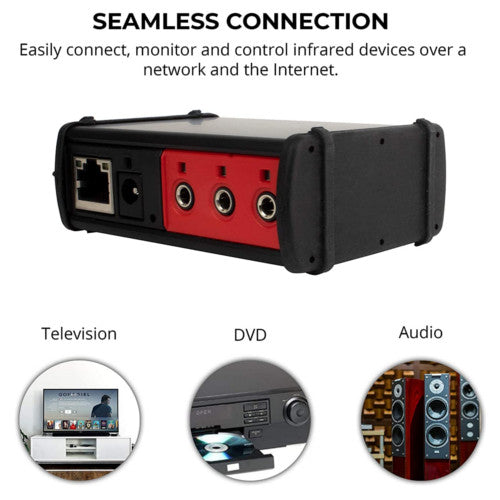

• Turn your ordinary infrared devices into smart devices

  Convert almost any infrared device including DVD players, flat panel TVs, remote controls, stereo components, and cable boxes into a smart device by connecting to a network in a matter of minutes.


• Remote Access

  The Global Caché iTach IP2IR-P TCP/IP to IR Smart Controller with PoE acts as a wire conduit and allows you to monitor, automate and control your DVD player, cable boxes, and more using your smart device from anywhere.

• Connect 3 Infrared Devices

  The Global Caché iTach IP2IR-P TCP/IP to IR Smart Controller with PoE allows you to connect up to 3 IR appliances to the internet through 3.5mm stereo jacks.

• Easy to Configure

  Can be configured in less than 5 minutes with clear, non-technical questions about your entertainment system and automatically routes sound and video input sources to the proper equipment making for hassle-free setup.

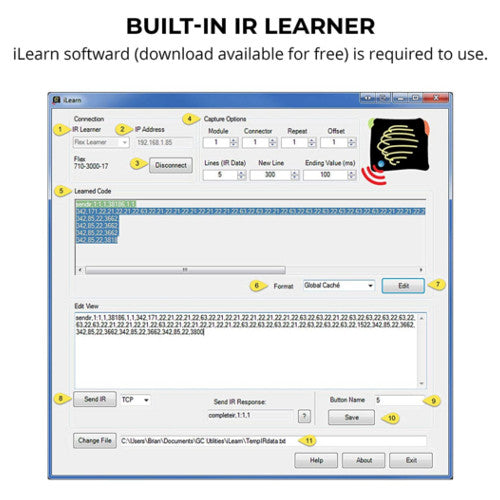

• Learns IR signals from existing hardware


  The Global Caché iTach IP2IR-P TCP/IP to IR Smart Controller with PoE can learn IR signals from your existing hardware, allowing you to teach it to control your equipment as needed.

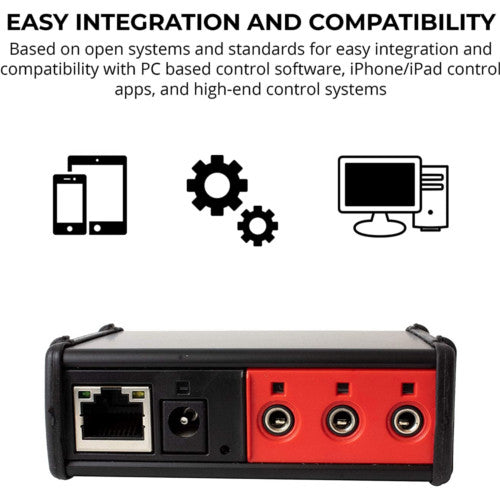

• Integrates with PC, Android, iOS Controls

  This controller has an open-network system that seamlessly integrates with your PC-based control software, iOS as well as high-end monitoring systems.

• Up to 8 iPhone/iPod devices can be used at the same time

  Up to 8 iPhone/iPod devices can simultaneously control one iTach, meaning your entire family can access your connected infrared devices at the same time without any issues.

COMPATIBILITY

Protocol

Model IP2IR with Power over Ethernet enabled

SPECS

Technical Specifications

• Manufacturer: Global Cache

• Manufacturer Product No.: IP2IR-P

• Power:
• Input 5 to 16V DC@300mA (wall power adapter included)
• International plugs available
• USB power cable draws power from USB port (included)
• Power over Ethernet (PoE) enabled
• Setup:
• Integrated web server for easy configuration
• Configure through TCP/IP set up commands
• Network Connection:
• RJ45 connector, 100/10 Mbits Ethernet protocol
• Adheres to TCP, DHCP and HTTP standards
• LED Indicators: Power and all connectors to indicate activity

• IR and Sensor:

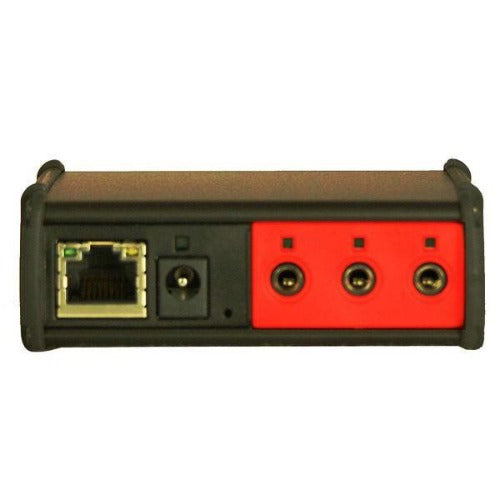

• Interface Connector: 3.5mm stereo jack
• 3 Independent selectable IR outputs or sensor inputs
• 3 IR emitters included
• 1 IR blaster included (supported on 3rd IR port)

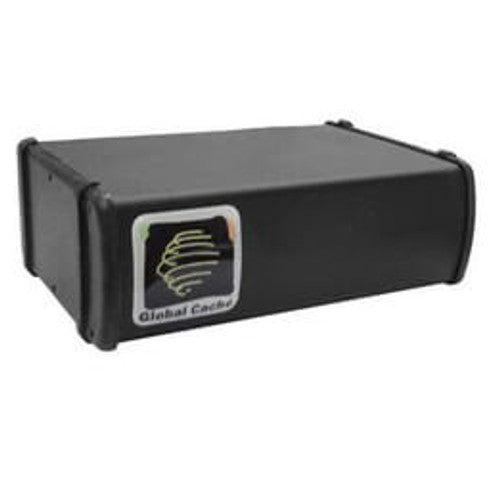

• Casing: Aluminum Extrusion Case, rubber end caps

• Weight: 3.25 oz (6 oz with power supply)

• Dimensions (L x W x H): 3.25" x 2.25" x 1.25"

• Certifications: FCC (Part 15, Class B), C-tick, CE, RoHs compliant

• Manufacturer Warranty: Two Year Limited
• Included:
• 1x - Global Cache iTach Wired TCP/IP to IR with PoE
• 1x - Quick Start Guide

INSTALLATION

Installation Guide

Quick Start Guide
