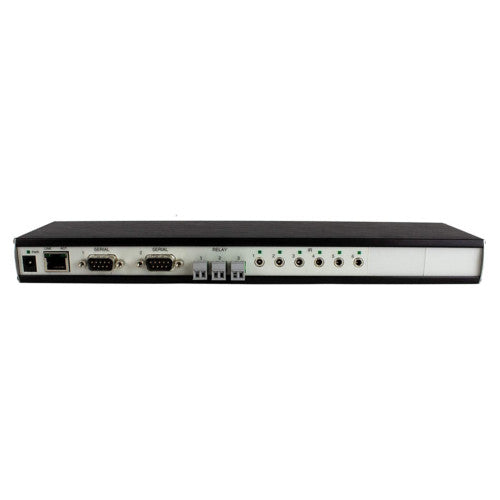

The Global Caché GC-100-12 Ethernet To Infrared Serial and Relay Network Adapter provides hard wired Ethernet control of 6 infrared emitter or input ports, 2 x RS-232 serial ports and 3 relays, for monitoring and control of A/V and other equipment over a network and the Internet. Based on open standards, the Global Caché GC-100-12 can easily be integrated in to a home automation system or controlled by PC or iPhone/iPod/iPad control applications.

Features

• Connect your A/V Equipment over a network

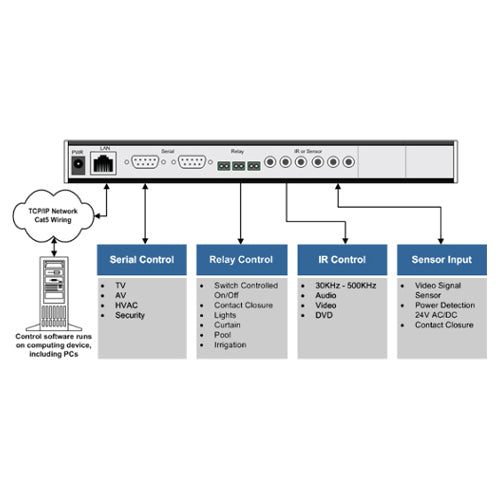

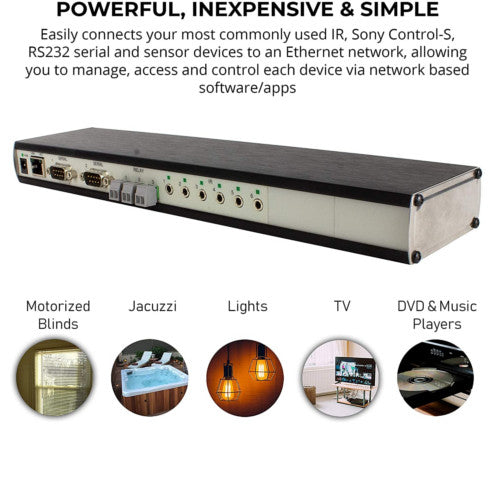

  The Global Caché GC-100-12 Ethernet To Infrared and Serial Network Adapter connects infrared, Sony Control-S, RS232 serial, sensors, and relay contact closures to a network  for monitoring and control of A/V and other equipment over a network and the Internet.

• Control more electronic Devices

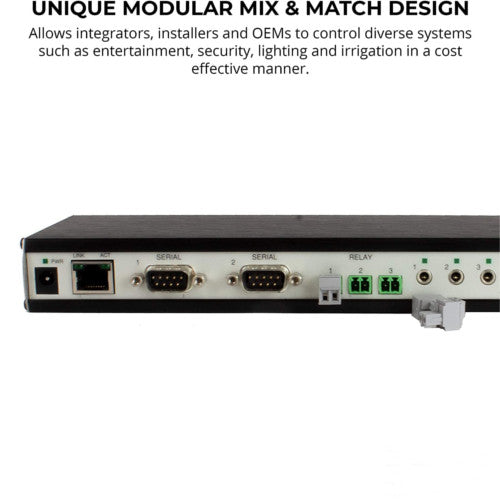

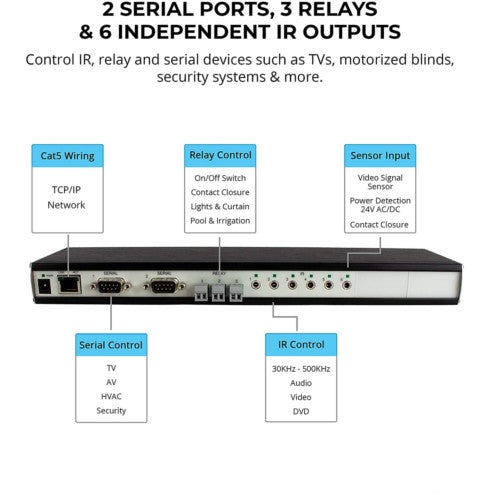

  The Global Caché GC-100-12 Ethernet To Infrared Serial and Relay Network Adapter has 2 serial ports, 3 relay connections, and 6 independent outputs/sensor inputs which means you can control various electronic devices at one time.

• Saves you Time and Money

  The Global Caché GC-100-12 Ethernet To Infrared and Serial Network Adapter provides lets you use one device rather than several from different vendors helping you save time and money to connect your A/V equipment to the network.

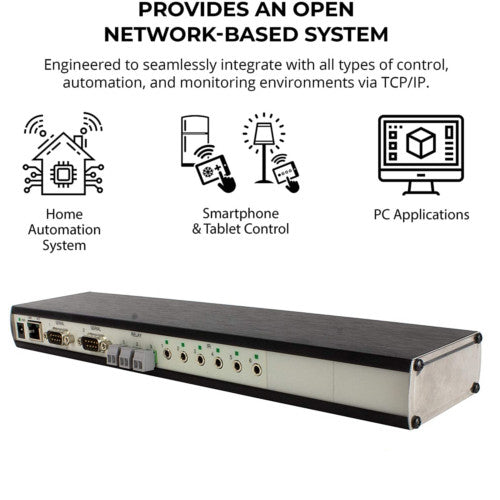

• Offers an Open Network-Based System

  This adapter supports TCP, DHCP, and HTTP protocols which means that you can configure and manage sensor devices from a single server without operator intervention.

• Integrates Seamlessly

  The Global Caché GC-100-12 Ethernet To Infrared and Serial Network Adapter conforms with all types of smart controls and monitoring environments and can easily be integrated in to a home automation system or controlled by PC or iPhone/iPod/iPad control applications.

• Remote Control

  You can remotely control all your AV equipment with various software including HC-Skipper, iRidium, Melloware and MobiLinc Remote.

• One Power Supply

  Only one power supply required for each enclosure means less expense, clutter, and improves reliability.

COMPATIBILITY

Works with

SPECS

Technical Specifications

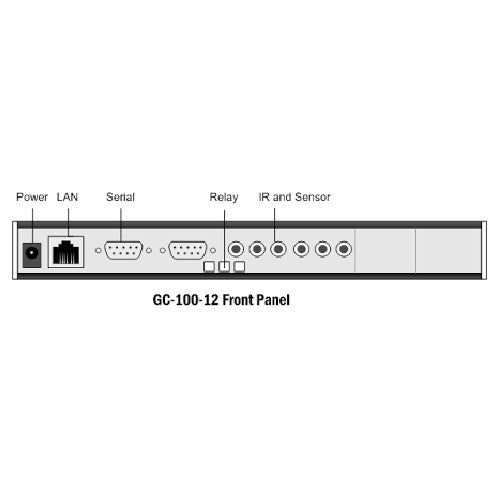

• Ports
• Power input
• Network connection
• Two serial ports
• Three relay connections
• Six independent IR outputs or sensor inputs
• Power Input

• 9 to 18V DC@300mA (wall power adapter included)
• International 220V available
• LED indicators

• Power
• Network activity
• Link status
• IR transmission
• Sensor input state
• GC-100 visual ID
• Setup

• Integrated web server for easy confi guration
• Configure through TCP/IP set up commands
• Discovery & Setup Utility

• Included Windows-based software simplifi es GC-100 network discovery of units and setup
• AMX beacon support
• Network Interface

• Connector: RJ45
• Protocol: 10 Base-T Ethernet
• Standards: TCP, DHCP, HTTP
• Serial Interface

• Connector: Male DB9
• Data Rates: 1200 baud to 57.6 Kbaud
• Parity: odd, even, none
• Flow control: bi-directional hardware RTS/CTS
• IR input: utilizing a GC-IRE and GCRG1, IR commands are received via RS232 port.
• IR & Sensor Interface

• Connector: 3.5mm stereo jack
• Selectable IR outputs or sensor inputs per port
• IR input: IR commands received via RS232 port utilizing GC-IRE and GC-RG1
• IR emitter supplied for each IR port
• GC-BL2 IR Blaster support
• Relay Interface

• Connector: screw terminal plug, 24V AC/DC@.5A, N.O. contact with transient voltage suppression
• Capability: contact closures
• Certifications

• FCC (Part 15, Class B), C-tick, CE
• RoHs compliant
• Software

• Product
• GC-IRL Learner Utility
• Discovery & Setup Utility
• Development and Testing
• GC-100 Test Utility
• GC-CCF Conversion Utility
• GC-Scan Test Utililty
• IR Test Utility
• Warranty

• One year limited warranty
• Support available through phone and email, as well as extensive online library
• Dimensions: 12.0” L x 3.0” D x 1.3” H
