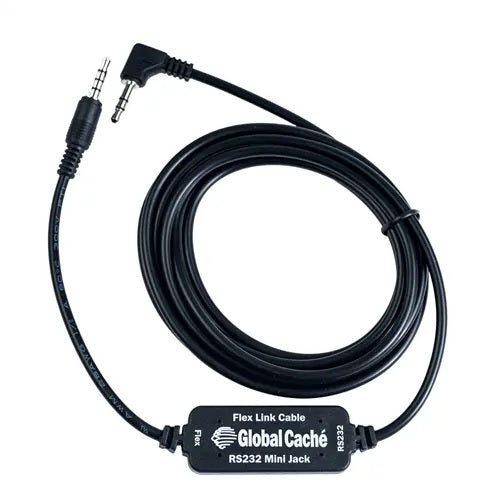

Global Caché Flex Link RS232 3.5mm Mini-Jack Cable
GBC-HB-FLC-SL-MJ-BKThe Global Caché Flex Link RS232 3.5mm Mini-Jack Cable utilizes a 3.5 mm mini jack, allowing for direct connections to 3.5 mm mini jack RS232 ports and serial inputs on many common TVs and other A/V devices. The cable connects directly to 3.5 mm mini jack service and serial inputs and allows simple software crossover configuration.
Features
-
Interconnects iTach Flex and A/V Devices
The Global Caché cable directly connects to a 3.5mm jack RS232 port of the iTach Flex Module and serial inputs in A/V devices and televisions. -
No Power Supply Required
The Global Caché Flex Link RS232 3.5mm Mini-Jack Cable does not require a power supply to be able to function. -
Configuration is Easy
You can easily configure the cable and the iTach Flex Module using the Global Cache iTach Flex web server.
COMPATIBILITY
Works with
Works with Global Caché iTach Flex IP or Wi-Fi controllers.
SPECS
Technical Specifications
- Setup
- Configurable using hardware jumpers and through
- Flex integrated web server or software API
- Serial Outputs
- Supports standard 8 data bit serial.
- RS232 Mini Jack:
- Full support for Tx, and Rx signals.
- Bi-directional communication with no hardware handshaking.
- Serial Configurations
- Flex Link Serial cables are configurable with the following settings:
- Baud Rate: 300 baud to 115200 Kbaud.
- Parity: Even, Odd, or None.
- Stop bits: 1 or 2.RS232:
- Flow Control: Enable hardware RTS/CTS flow control.
- Gender: Allows configuration of cable gender. Allows for null modem and straight through cable creation.
- RS232 Mini Jack:
- Gender: Allows for null modem and straight through cable creation.
- Cable/Connector
- 3.5 mm four conductor jack to Flex Link Port on iTach Flex devices.
- RS232 Mini Jack:
- Male 3.5 mm mini jack stereo connector.
- 6.5 ft (2 meters) cable.
- No power supply required.
- Dimensions
- RS232 Mini Jack: 2.48” x .79” x.28”
- Warranty: Two year limited warranty
- Support available via phone, email, and web portal
