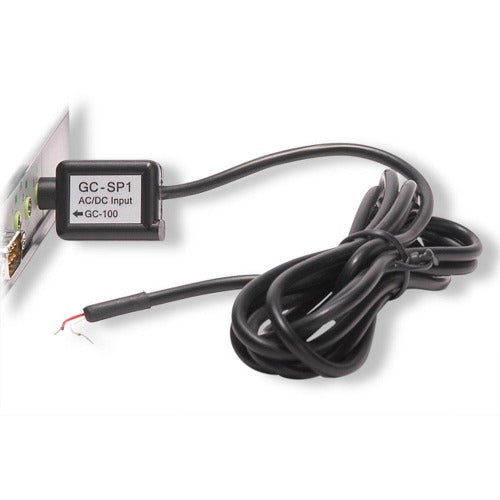

The Global Caché AC/DC Voltage Sensor is a voltage detection sensor that monitors the on-and-off status of electronic components by detecting an AC or DC voltage greater than ± 2V. Voltages up to ± 24V can be connected to the GC-SP1 to determine the powered state of equipment, power strips (via a wall adapter), or a "ring" condition on a telephone circuit. The Global Caché AC/DC Voltage Sensor works with other Global Cache GC-100 adapters or other controllers that provide 5V power and accept digital logic (TTL) input. The GC-SP1 connector is a standard 3.5mm

Features

• Detects the on-and-off status of electronic components

  The Global Caché AC/DC Voltage Sensor monitors the on-and-off status of electronic components by detecting an AC or DC voltage greater than ± 2V.

• Isolated and Protection

  This sensor is optically isolated and protected by transient voltage suppressors.

• Use with GC-100 Network Adapter and other controllers


  The Global Caché AC/DC Voltage Sensor works with other Global Cache GC-100 adapters or other controllers that provide 5V power and accept digital logic (TTL) input. The GC-SP1 connector is a standard 3.5mm stereo jack.


COMPATIBILITY

Works with

Works with other Global Cache GC-100 adapters or other controllers that provide 5V power and accept digital logic (TTL) input. The GC-SP1 connector is a standard 3.5mm stereo jack.

SPECS

Technical Specifications

• Output Indication:

• DC Voltages: ≥ ± 1.5V for frequencies ≥ 10Hz
• AC Voltages ≥ ± 1.5V p-p for frequencies ≥ 10Hz
• Maximum Input Voltage: ± 24V
• Cable/Connector: 6 feet (1.8 meters), tinned leads for voltage input and 3.5 mm stereo plug into the iTach.
• Warranty: 2-Year Limited
