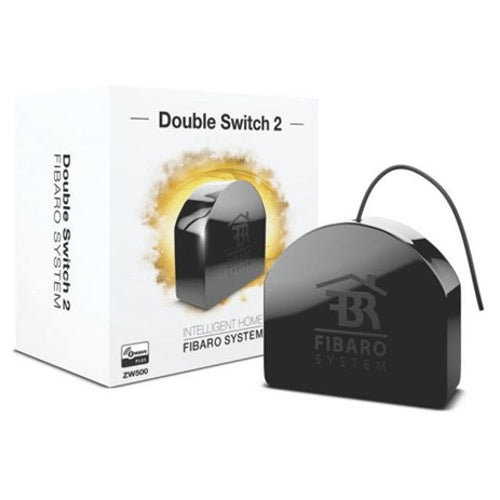

The FIBARO Double Switch 2 Z-Wave Plus with Energy Monitoring installs behind your ordinary switches to turn it into a smart switch, providing you remote control of almost any connected devices from your lighting to household appliances. Once installed and connected to your home automation hub, you'll be able to turn on/off any connected device remotely, create powerful scenes to automate your routine, and set schedules so your devices only turn on when you need them to. The FIBARO  Switch 2 can monitor your energy consumption to help lower your energy usage and save on your energy bill.

Features

• Turn your ordinary switches into smart switches

  Installs behind your ordinary switches to turn it into a smart switch, letting you turn on/off the lights, electrical appliances, or cut off power from the sockets while preserving the aesthetics of your original switches.


• Remote control your connected devices anywhere


  You'll be able to access and remote control your connected devices anywhere from your smartphone, so you don't have to worry if you forgot to turn off your ceiling fan again.


• Create Powerful Scenes and Custom Schedules


  Create powerful scenes to automate your routine and set schedules so your devices only turn on when you need them to. You can make the coffee machine brew your favorite blend in the morning or turn on the A/C to cool the room before you get home.

• Small and Compact Design


  The FIBARO Switch 2 is thoughtfully small and compact to fit most of the flush mounted junction boxes and light switch sockets.

• A multitude of uses


  The FIBARO Switch 2 allows you to turn on/off any electrical device remotely, creating a multitude of uses from turning on your dishwasher to turning off the iron from the convenience of your smartphone.


• Energy Savings

  This switch comes with built-in energy monitoring technology to monitor what devices are consuming the most energy and allow you to change how you are using those devices to save on your energy bill.

NOTE: Double Switch 2 (FGS-223) – can control two electic devices

COMPATIBILITY

Protocol

Works with

Works with various types of switches – momentary, toggle three-way, etc

SPECS

Technical Specifications

• Power supply: 100-240V~ 50/60 Hz
• Rated load current - Double Switch 2 (FGS-223):

• IEC standards: 6.5A per channel, 10A overall
• UL standards (resistive loads): 6A per channel, 9.5A overall
• UL standards (incandescent loads): 3A per channel
• Operating temperature: 0-35°C

• For installation in boxes: Ø ≥ 50mm, depth ≥ 60mm

• Radio protocol: Z-Wave (500 series chip)

• Radio signal power: up to 1mW

• Radio frequency:
• 868.4 or 869.8 MHz EU;
• 908.4, 908.42 or 916.0 MHz US;
• 921.4 or 919.8 MHz ANZ;
• 869.0 MHz RU;
• Radio transmit power: up to 6 dBm (EIRP)

• Range:
• up to 50m outdoors
• up to 40m indoors
• (depending on terrain and building structure)
• Comply with EU directives:
• RED 2014/53/EU
• RoHS 2011/65/EU
• Dimensions (L x W x H): 42.5 x 38.25 x 20.3 mm

Rated load current table:

INSTALLATION

Installation Guide
