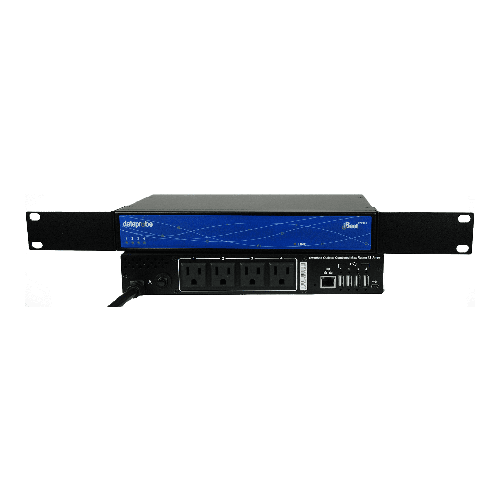

The Dataprobe iBoot-PDU4A-N15 4-Outlet Web Power Smart Switch a web-accessible, managed PDU independently controlled outlets, enables multiple users to reboot remotely from anywhere, using any web browser, Telnet client or SNMP manager. It will will save you time and money by reducing costly downtime and reduces costly site visits, ensure business continuity and increase network reliability.

Features

• Keeps your critical systems running 24/7


  The iBoot-PDU series keeps your critical systems running without expensive service calls. Use low-cost remote power control to automatically reboot failed devices and get up and running in the most cost effective way possible.

• Independently Controllable Outlets

  The iBoot-PDU series is designed to provide power distribution and remote power control. Each iBoot-PDU4A-N15 allows four outlets to be independently switched on and off for reboot, energy management and security.

• Automation

  The iBoot-PDU can monitor voltage, current and temperature to provide automatic response to the physical environment. AutoPing testing monitors network elements.

• Real-Time Event Control

  Set automatic power actions based on your schedule. Restart systems every day to reduce memory bloat. Power up resources only when needed for energy management, lifecycle extension or security.

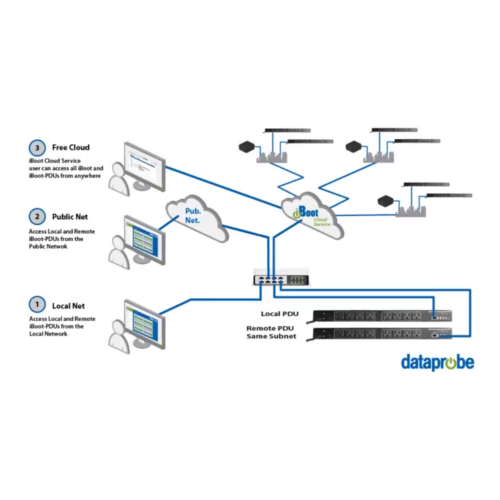

• Multiple iBoot-PDU Cluster Configuration

  Additional iBoot-PDUs can be managed from a single unit. One master iBoot-PDU provides the communication to the users and continuously receives status information from the rest of the iBoot-PDUs in the cluster.

• Telnet/Serial CLI Control

  Telnet and serial access use the same Command Line Interface (CLI) structure and syntax to completely configure the iBoot-PDU, or multiple iBoot-PDUs in a cluster configuration.

• Group management


  Multiple outlets, across multiple iBoot-PDUs in clustered configurations can be linked together in named groups and managed together. This allows for example, power cycling all devices of a certain type together.


COMPATIBILITY

Works with

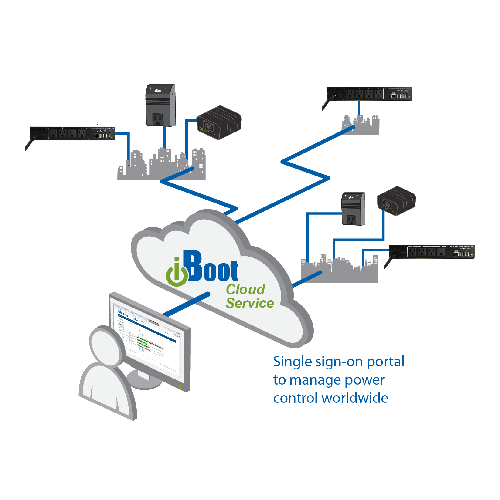

Web Browser, Free Cloud, Local Network, Telnet/CLI, Landline Modem (optional), SNMP, Advanced Automation

SPECS

Technical Specifications

• Current: 15A
• Voltage: 115V
• Input Plug: (Single) NEMA 5-15P, 10ft Chord
• Outlets: (4) NEMA 5-15R
• Mounting: 1U Rack Mount or Desktop
• Monitoring: Temperature (optional), Voltage, Current (A), Date-Time
• Switching: Outlets, Outlet Groups, Complex Custom Sequences
• Management: Web Browser, Free Cloud, Local Network, Telnet/CLI, Landline Modem (optional), SNMP, Advanced Automation

INSTALLATION

Installation Guide
