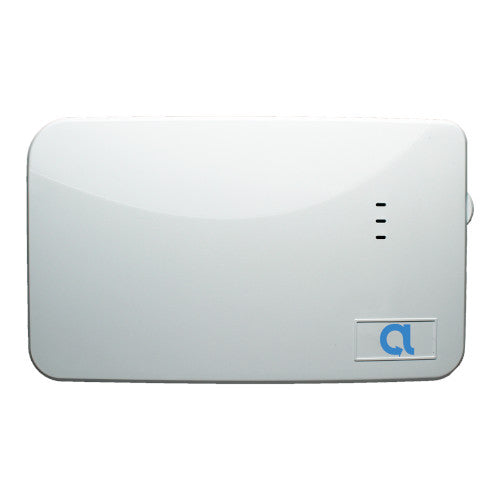

The Alula Alula Universal Wireless Translator Repeater RE524X is a wireless-to-wireless universal translation device for converting wireless signals from one RF signal security brand to another. In addition to being a translator, you may choose to use the RE524X as a wireless repeater to extend the range of installations from the control panel.

Features

• Wireless Range Extension

  The repeater can extend the wireless range of security devices, allowing them to communicate with the control panel over longer distances.

• Protocol Translation

  It can translate signals between different wireless protocols, enabling compatibility between devices that use different communication standards. For example, it might translate signals from proprietary protocols to more standard protocols like Z-Wave or Zigbee.

COMPATIBILITY

Protocol

Works with DSC, Honeywell, Interlogix, 2GIG and Napco sensors

SPECS

Technical Specifications

• Dimensions: 8.5 x 5.0 x 1.3 inches
• Tamper Activation: Cover Opening, Wall Removal
• Mounting Screws: #4 or #6
• Operating Temperature: 32 to 120°F (0 to 49°C)
• Storage Temperature: -4 to 86°F (-20 to 30°C), Long-Term
• Maximum Humidity:85% non-condensing relative humidity
• Power Input: 100-240VAC 50/60Hz 0.5A
• Power Output: 12VDC 1A
• RF Frequency: 319.5MHz, 345MHz, 433.92MHz
• Sensors: Up to 128

INSTALLATION

Installation Guide

Manual
