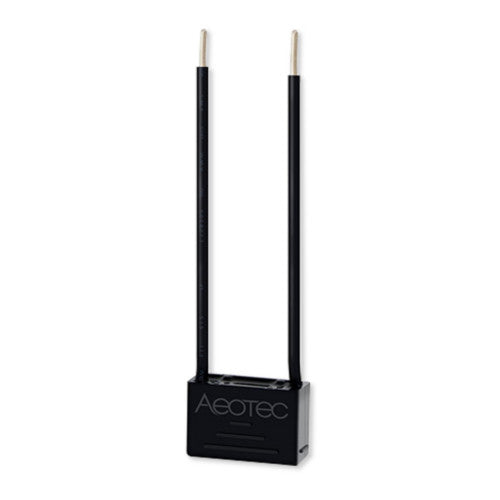

The Aeotec Nano Dimmer Bypass saves wasted energy and eliminates flickering when dimming the lights in a room. The Aeotec Nano Dimmer Bypass works with static and dimmable LEDs and CFLs and easily connects to a Nano Dimmer (sold separately) using a 2-wire or 3-wire connection.

Features

• Eliminates flickering lights

  The Aeotec Nano Dimmer Bypass eliminates low-watt lightbulbs to flicker by removing the signal from the power line.


• Saves energy and money


  The Aeotec Nano Dimmer Bypass stops low-wattage lights from continuing to draw energy which saves wasted energy and in turn, helps save you money!


• Works with LEDs and CFLs


  The Aeotec Nano Dimmer Bypass is designed to stop most bulbs from flickering including static and dimmable LEDs and CFLs.


• Works with Aeotec Nano Dimmer


  The Aeotec Nano Dimmer Bypass works with Aeotec’s Nano Dimmer (sold seperately) creating a complete Z-Wave solution for dimming lights.


• Tiny, but powerful


  The Aeotec Nano Dimmer Bypass has a small footprint and invisibly installs near your light fitting taking up next to no space at all.

COMPATIBILITY

Protocol

Works with

Aeotec Nano Dimmer (sold seperately)

SPECS

Technical Specifications

• Name: Nano Dimmer

• Model number: ZW111

• Product Dimensions: 42.5 x 40 x 20 mm

• Package Dimensions: 73 x 73 x30 mm

• Product Weight: 27 g

• Total Package Weight: 64 g

• UPC / EAN: 810667023447

• Power input: 120 to 240VAC, 50/60Hz.

• Rated Current Output: 1.2A maximum

• Rated Power Output:
• 144W maxim
• All Motor loads must be under 100W maximum for any region (3-wire power only).
• Dimming Technology: PMW

• Repeater: Yes

• Beaming: Yes

• External Switch max wiring length (between COM/S1 and COM/S2):

• 10 Meters
• 33 Feet
• Minimum Power (Watt):

• If your load is under the minimum requirement, you may need to install Nano Dimmer Bypass Load.
• 2-wire (no neutral): Resistance load only: min 20W.
• 3-wire (with neutral)
• Capacitive load: min 11W.
• Inductive load: no min / max 100W
• Resistance load: min 10W.
• Max standby power: <0.8W.

• Power measurement accuracy: + or - 3W.

• Operating temperature:

• 0℃ to 40℃
• 32℉ to 104℉.
• Relative humidity: 8% to 80%.

• Operating distance:

• Up to 492 feet outdoors.
• Up to 150 metres outdoors.
• Supported External Switches:

• Toggle Switches (2-way, 3-way, 4-way)
• Any standard Momentary Push Button (Cannot be used with LED powered momentary push buttons)
