The Aeotec Illumino Z-Wave Smart Switch turns your ordinary switches into a smart switch. It replaces existing switches with automation, scheduling, and local control and acts as a multi-functional light switch to control lights, turn fans on/off, control sump pumps, or control other devices through automation as a secondary scene controller.

Features

• Turns your ordinary switch into a smart switch


  The Aeotec Illumino Z-Wave Smart Switch turns your ordinary switches into a smart switch. It replaces existing switches with automation, scheduling, and local control.

• Easy installation

  Powerful lighting doesn’t mean complicated wiring – wiring terminals are clearly marked and firmly secured with easy-access to dual-offset Ground, Line, Load, required Neutral, and optional Traveller ports for 3-way+ installations.

• Quality lighting

  Enhanced lighting means an enhanced switch. The Aeotec Illumino Z-Wave Smart Switch has been certified, coded, and engineered with Aeotec’s decade-plus experience in crafting intelligent lighting controllers.

COMPATIBILITY

Protocol

SPECS

Technical Specifications

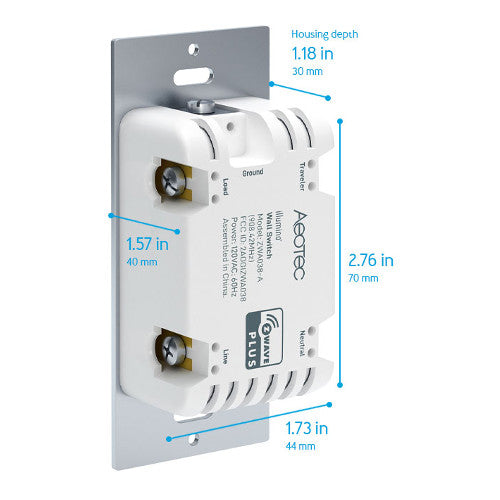

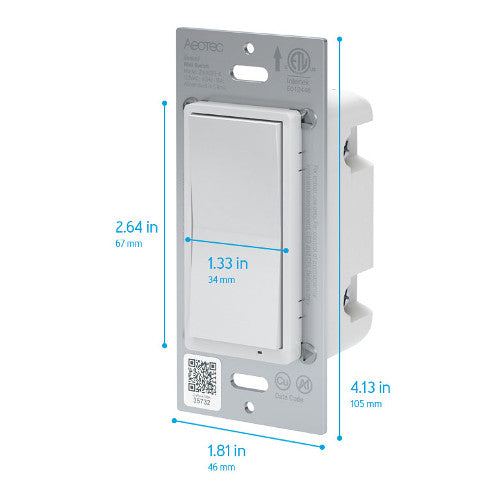

• Product Dimensions: 105 x 46 x 40 mm
• Product Weight: 150g
• Input Voltage: 110/120 VAC 50/60Hz
• Resistive load: Max 1800W
• Capacitive load: Max 960W (LED/CFL)
• Inductive load: Max 380W (Motors)
• Power type: Wired
• Operating temperature: 0℃ to 50℃
• Operating humidity: 8% to 80%.
• Operating distance Indoor: 35m Indoor
• Operating distance Outdoor: 150m outdoor

INSTALLATION

Installation Guide

Manual
