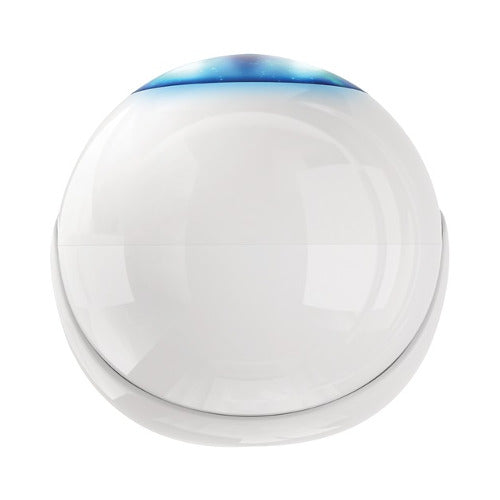

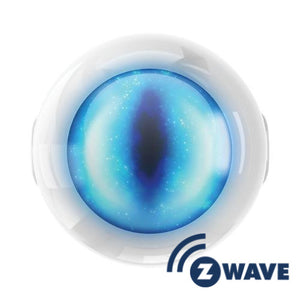

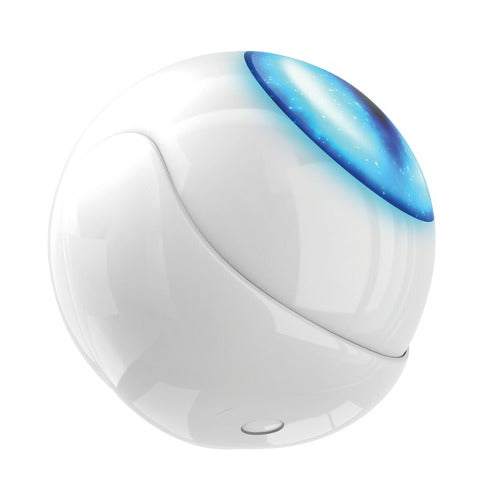

The Fibaro Motion, Light and Temperature Sensor for Z-Wave is a multi-sensor that sends motion alerts, light reports, real-time temperature readings and vibration notifications directly to the Z-Wave hub. This battery-powered and wireless sensor can be fixated anywhere with its smart bracket with grip making it your home's ultimate guardian, watching over you and your family 24/7.

Features

• Multi-purpose sensor

  Multi-purpose sensor that can sense motion, detect light intensity, and measure temperature levels to provide a complete motion detection solution.

• Activate complex sequences

  Send motion alerts, light reports, real-time temperature readings to your Z-Wave ecosystem to activate the most complex sequences.

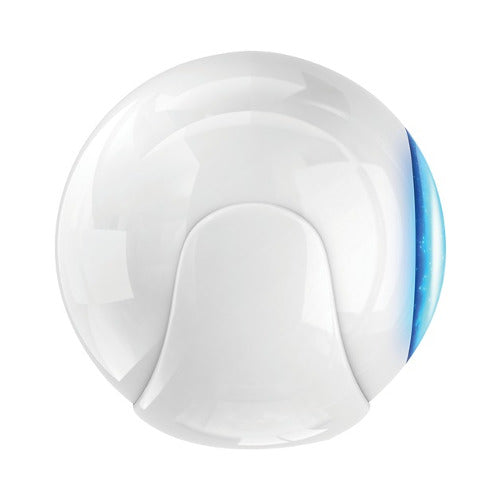

• Smart Bracket with Grip

  Battery-powered and wireless sensor can be fixated anywhere with its smart bracket with grip allows it to be mountable in a hidden place or in plain view.

• Secure Transmission

  All data transmitted to system using encrypted signals, protected by tamper alerts.

• Customizable settings

  Over 20 advanced settings to customize the sensor.

COMPATIBILITY

Protocol

SPECS

Technical Specifications

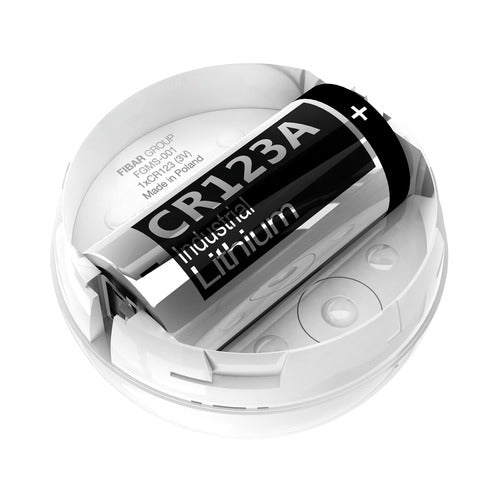

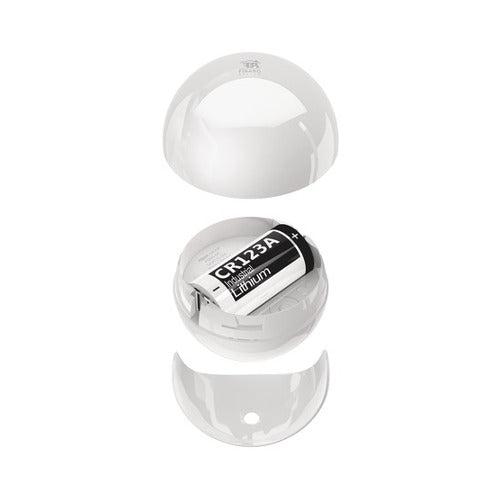

• Power supply: CR123A/CR17345 battery, 3.0V DC
• Recommended installation height: 2.4 m
• Light intensity measuring range: 0 – 32000 lux
• Operational temperature: 0°C to 40°C
• Measured temperature range: -20°C to 100°C
• Temperature measuring accuracy: 0.5°C (within 0 – 40°C range)
• EU directive compliance:
  • RED 2014/53/EU
  • RoHS 2011/65/EU
• Radio protocol:
  • Z-Wave
  • Z-Wave+ (firmware 3.2 or higher)
• Radio frequency:
  • 868.4 or 869.8 MHz EU;
  • 908.4 or 916.0 MHz US;
  • 921.4 or 919.8 MHz ANZ;
  • 869.0 MHz RU;
• Radio transmit power: up to -5 dBm (EIRP)
• Range:
  • up to 50 m outdoors
  • up to 30 m indoors
  • up to 40 m indoors (firmware 3.2 or higher)
    (depending on terrain and building structure)
• Includes: Screw, battery, mounting bracket and adhesive

INSTALLATION

Installation Guide

Installation Guide
