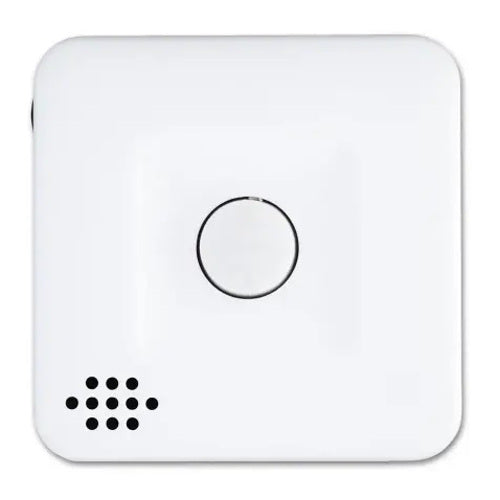

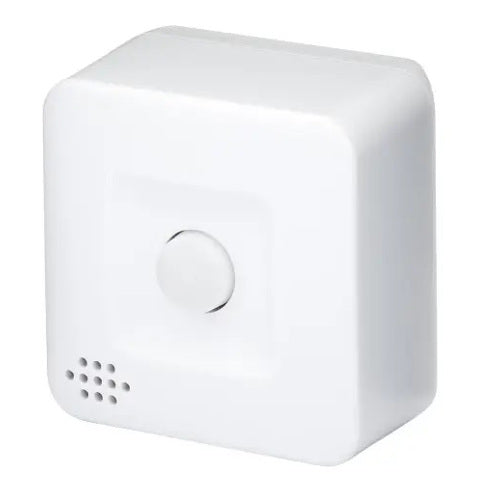

The Centralite Zigbee Micro PIR Smart Motion Sensor detects and notifies you of the slightest movement in a certain area. You can set this smart motion sensor to trigger lighting scenes, HVAC settings, and security alarms based on the detection of motion, adding both security and advanced home automation features to your connected home. It's small and obscure enough that it can be mounted to a wall, corner, or placed directly on a counter or table. Increase the safety and security of your smart home with the Centralite Zigbee Micro PIR Smart Motion Sensor.

Features

• Receive alerts if motion is detected while you’re away

  The Centralite Zigbee Micro PIR Smart Motion Sensor detects and notifies you of the slightest movement in a certain area, so you'll always know if there is unexpected activity in your home even if you're away.


• Trigger Scenes and Lights

  You can create create custom automatic flood light and entry scenes, such as  automatically turn on garage, hallway, living room, and outdoor flood lights when motion in a garage door is detected, or you can use time-based motion triggers to light a path at night, whether it is the pathway to your home or a light night trip to the kitchen or bathroom.


• Save energy and money by turning off lights when not in use


  The Centralite Zigbee Micro PIR Smart Motion Sensor detects movement, so anytime the lights are on in a room that aren't being used can be turned off automatically, saving you energy and money on your energy bill.


• 15 foot (4.5 m) detection range

  The Centralite Zigbee Micro PIR Smart Motion Sensor has a 15 foot (4.5 m) detection range, so it's sensitive enough to detect motion from across the room and down long hallways, meaning you can place it anywhere that needs additional security.


• Simple "Pair-to-Pair" joining Process


  The pairing process is as simple as pulling out a small plastic tab from the bottom of the device. There is nothing for the user to take apart or put back together.


• Easy-to-Install


  The Centralite Zigbee Micro PIR Smart Motion Sensor is quick and easy-to-install with a mounting plate that can be installed using either adhesive strips or mounting screws and the sensor simply slides into place on the mount.


COMPATIBILITY

Protocol

Works with

Compatible with All ZigBee HA 1.2 Platforms

• SmartThings

• Time Warner IntelligentHome
• Cox Homelife
• Bright House Networks Home Security and Automation
• Rogers Home Monitoring
• PEQ

SPECS

Technical Specifications

• Rated: 3V
• Battery: CR-2450 (1x)
• Battery Life: Up to 2 years
• Operating Temperature: 0° to 40°C
• Temperature: -20° to 50°C
• Humidity Range: 0 to 90% RH. (non-condensing)
• Protocol: ZigBee HA 1.2
• TX Strength: +8 dBm
• RF Channels: 16
• Range: 130+ ft. (40+ m) L.O.S.
• Temp Accuracy: ±1.8 °C (max), –10 to 85 °C
• Includes:
• 1x - 3-Series Micro Motion Sensor
• 1x - Mounting Adhesive
• 1x - CR-2450 Battery (pre-installed)
• 1x - Quick Start Guide

INSTALLATION

Installation Guide

Step 1: Open ZigBee Network for Joining

Using your controller or hub’s interface, enable the ZigBee network for joining.

Step 2: Pull Tab from Bottom of Sensor

Pull the small plastic tab out from the bottom of the sensor and it will immediately begin searching for a network to join.

Step 2: Finish Joining at Hub (optional)

Some hubs and controllers require additional steps such as naming or categorizing the device.
